iptables介绍
iptables 初识
iptables 接口
iptables table
iptables chain
iptables
iptables 内核实现之netfilter
netfilter 介绍
netfilter is a set of hooks inside the Linux kernel that allows kernel modules to register callback functions with the network stack. A registered callback function is then called back for every packet that traverses the respective hook within the network stack.
netfilter设计实现上采用了unix的分离原则: 策略同机制分离, 接口同引擎分离.
Main Feature
- stateless packet filtering (IPv4 and IPv6)
- stateful packet filtering (IPv4 and IPv6)
- all kinds of network address and port translation, e.g. NAT/NAPT (IPv4 and IPv6)
- flexible and extensible infrastructure
- multiple layers of API’s for 3rd party extensions.
源码分析，以linux内核版本以linux-3.16.62为例.
ipv4 协议栈
netfilter hook
arp.c:688: NF_HOOK(NFPROTO_ARP, NF_ARP_OUT, skb, NULL, skb->dev, dev_queue_xmit);
arp.c:975: return NF_HOOK(NFPROTO_ARP, NF_ARP_IN, skb, dev, NULL, arp_process);
ip_forward.c:141: return NF_HOOK(NFPROTO_IPV4, NF_INET_FORWARD, skb, skb->dev,
ip_input.c:256: return NF_HOOK(NFPROTO_IPV4, NF_INET_LOCAL_IN, skb, skb->dev, NULL,
ip_input.c:457: return NF_HOOK(NFPROTO_IPV4, NF_INET_PRE_ROUTING, skb, dev, NULL,
ipmr.c:1785: NF_HOOK(NFPROTO_IPV4, NF_INET_FORWARD, skb, skb->dev, dev,
ip_output.c:311: NF_HOOK(NFPROTO_IPV4, NF_INET_POST_ROUTING,
ip_output.c:327: NF_HOOK(NFPROTO_IPV4, NF_INET_POST_ROUTING, newskb,
ip_output.c:331: return NF_HOOK_COND(NFPROTO_IPV4, NF_INET_POST_ROUTING, skb, NULL,
ip_output.c:345: return NF_HOOK_COND(NFPROTO_IPV4, NF_INET_POST_ROUTING, skb, NULL, dev,
raw.c:410: err = NF_HOOK(NFPROTO_IPV4, NF_INET_LOCAL_OUT, skb, NULL,
xfrm4_input.c:64: NF_HOOK(NFPROTO_IPV4, NF_INET_PRE_ROUTING, skb, skb->dev, NULL,
xfrm4_output.c:99: return NF_HOOK_COND(NFPROTO_IPV4, NF_INET_POST_ROUTING, skb,
Packet Flow

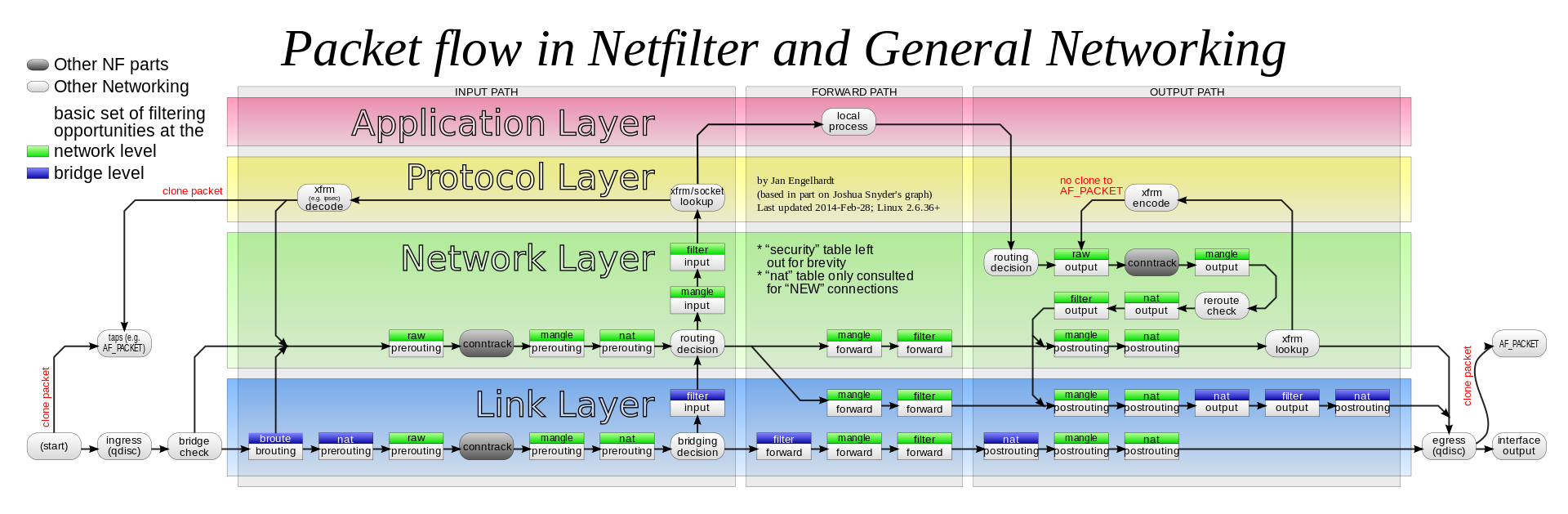

netfilter packet 数据流如下:
netfilter/iptables 应用
- build internet firewalls based on stateless and stateful packet filtering
- deploy highly available stateless and stateful firewall clusters
- use NAT and masquerading for sharing internet access if you don’t have enough public IP addresses
- use NAT to implement transparent proxies
- aid the tc and iproute2 systems used to build sophisticated QoS and policy routers
- do further packet manipulation (mangling) like altering the TOS/DSCP/ECN bits of the IP header
